SIZE

4"x4 1/4"
Load Bearing Capacity: 35 Kg
Nett.Weight: 0.70Kg
Size in MM:101.6 X 38.1
Centre Hub Bore Size: 5 / 8’’bore

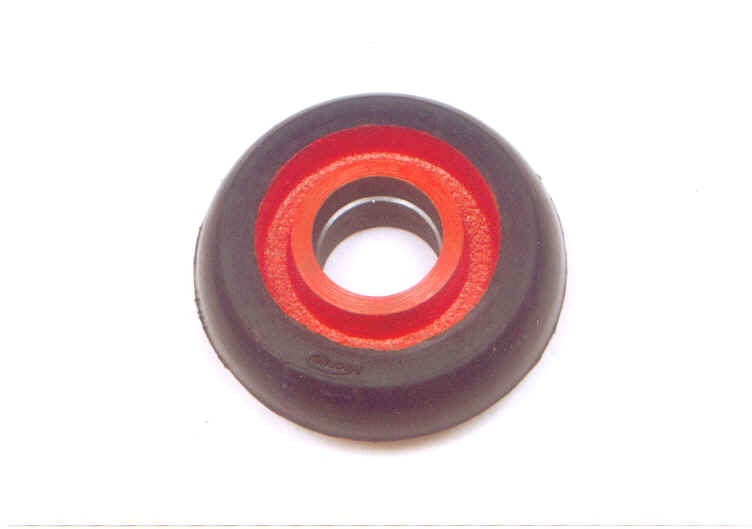

6"x2"
Load Bearing Capacity:75 Kg
Nett.Weight:1.87 Kg
Size in MM:152.4 X 50.8
Centre Hub Size:
a) Bored to bearing size 6205
b) Also available 1’’ bore

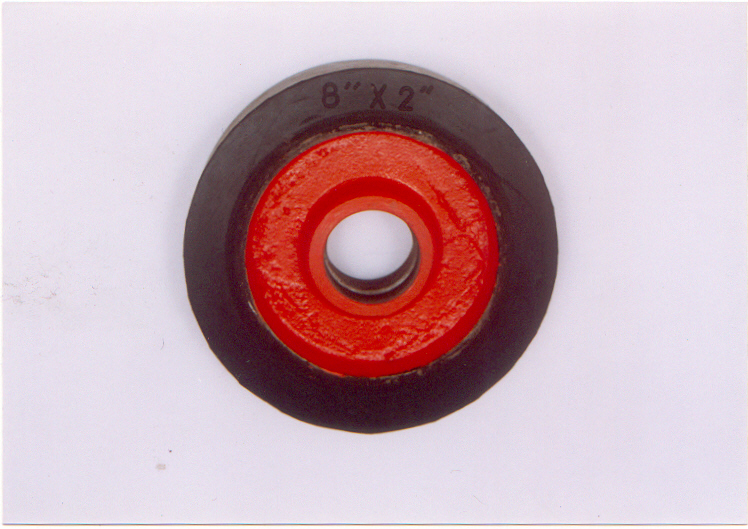

8"x2"
Load Bearing Capacity:90 Kg Nett.Weight:3.40 Kg
Size in MM:203.2 X 50.8
Centre Hub Bore Size:
a) Bored to bearing size 6205
b) Also Available in 1" Bore

8"X3"
Load Bearing Capacity: 250 Kg Nett.Weight:6.62 Kg
Size in MM: 203.2 X 76.2
Centre Hub Bore Size:
a) Bored to bearing size 6205

10"X2"
Load Bearing Capacity: 150Kg Nett.Weight:4.54 Kg
Size in MM:254 X 50.8
Centre Hub Bore Size:
a) Bored to bearing size 6205
b) Also available 1’’ bore

PICTURE NOT  AVAILABLE

12"X2"
Load Bearing Capacity:250Kg
Nett.Weight: 6.35 Kg
Size in MM: 304.8 X 50.8 X 25.4
Centre Hub Bore Size:
a) Bored to bearing size 6205
b) Also available 1’’ bore

12"x 3.1/2" Cut Type
Load Bearing Capacity:500 Kg
Nett.Weight :11.0Kg
Size in MM: 304.8 X 88.9
Centre Hub Bore Size:
a) Bored to bearing size 6205

16"X2 1/2"
Load Bearing Capacity:650Kg Nett.Weight:14.50
Size in MM: 406.4 X 63.5
Centre Hub Bore Size:
a) Bored to bearing size 6206/6207

16"X4"
Load Bearing Capacity: 850Kg Nett.Weight:22.50
Size in MM: 406.4 X 101.6
Centre Hub Bore Size:
a) Bored to bearing size 6206/6207

PICTURE NOT  AVAILABLE

17"X5" Cut Type
Load Bearing Capacity:1000 Kg
Nett.Weight: 25.5 Kg
Size in MM: 431.8 X 127.0
Centre Hub Bore Size:
a) Bored to bearing size 6307

18"x3"
Load Bearing Capacity: 750Kg Nett.Weight:24.20
Size in MM: 457.2 X 76.2
Centre Hub Bore Size:
a) Bored to bearing size 6206 / 6207

PICTURE NOT  AVAILABLE
